Foam fire trucks are essential for fighting flammable liquid fires at airports, oil refineries, chemical plants, and fuel storage facilities. Like all specialized equipment, foam fire trucks require regular maintenance to stay ready for emergencies. This article covers common faults and practical solutions.

foam fire truck common faults and solutions

I. Types of Firefighting Foam

Before discussing faults, understanding foam types is essential. There are three main categories:

Foam Type	Application
Class A Foam	Ordinary combustibles (wood, paper, cloth)
Class B Foam	Flammable liquids (gasoline, oil, diesel)
AFFF (Aqueous Film Forming Foam)	Forms a barrier between fuel and air, prevents re-ignition

II. Common Faults and Solutions

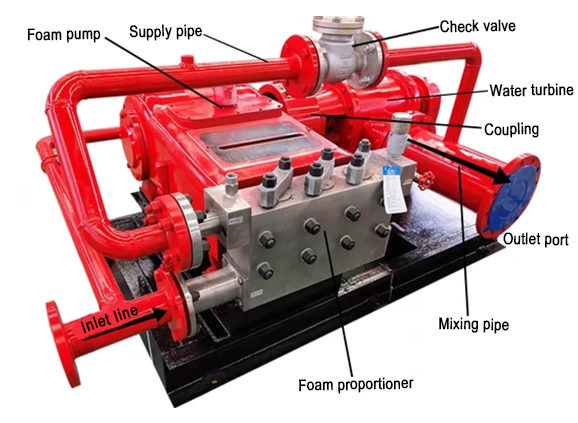

1. Pressure System Faults

Problem: Insufficient foam discharge or unstable pressure

Possible causes:

Damaged pressure pump
Pump drive system failure
Blocked pipelines

Solutions:

Regularly inspect the pump and drive system
Clean and maintain pipelines
Repair or replace damaged components

2. Foam Liquid Supply Issues

Problem: Insufficient foam liquid or system not working properly

Possible causes:

Foam liquid pump failure
Foam tank problems
Blocked foam liquid pipelines

Solutions:

Check pump, tank, and pipelines
Ensure all passages are clear
Clean and replace damaged components

3. Control System Faults

Problem: Unable to accurately control foam discharge and water flow

Possible causes:

Circuit failure
Damaged control panel
Sensor failure

Solutions:

Check circuit connections
Replace damaged control panel or sensors
Perform system recalibration

4. Foam Concentration Control Issues

Problem: Foam concentration too high or too low, affecting extinguishing performance

Possible causes:

Concentration control system failure
Damaged proportioner
Incorrect proportioner settings

Solutions:

Calibrate the concentration control system
Inspect and clean the proportioner
Ensure foam concentration is within the correct range

5. Vehicle Power System Faults

Problem: Vehicle power system failure affects driving and operation

Possible causes:

Engine failure
Transmission problems
Electrical system failure

Solutions:

Regularly inspect engine, transmission, and electrical system
Ensure normal operation
Repair or replace faulty components in a timely manner

6. Foam Generator Cannot Produce Foam

Problem: Foam generator fails to produce foam or produces poor quality foam

Possible causes:

Air inlet blocked by foreign objects
Foam mixture does not meet requirements (expired foam concentrate, incorrect proportioning ratio)

Solutions:

Inspect and remove blockages from the air inlet
Test and maintain the proportioner
Replace expired foam concentrate

7. Proportioner Corrosion or Seizure

Problem: The proportioner is rusted or stuck

Possible causes:

Not rinsed with clean water after use
Long-term corrosion from foam concentrate

Solutions:

Regularly remove and maintain the proportioner
Rinse thoroughly with clean water after each test or use

foam delivery system wear and tear

8. Pump Performance Issues

Problem: Low pump pressure or unusual noise

Possible causes:

Clogged strainer or filter
Air leaks in the suction line causing cavitation
Worn or damaged pump components

Solutions:

Check and clean the strainer and filter
Inspect hoses and connections for wear or damage
Perform routine pump tests under various conditions

9. Proportioning System Calibration Issues

Problem: Incorrect foam-to-water ratio affecting extinguishing effectiveness

Possible causes:

Improper calibration settings
Blocked hoses or nozzles
Faulty valves

Solutions:

Check and adjust calibration settings
Clean hoses and nozzles regularly
Inspect all valves for proper operation
Provide regular training for crew members

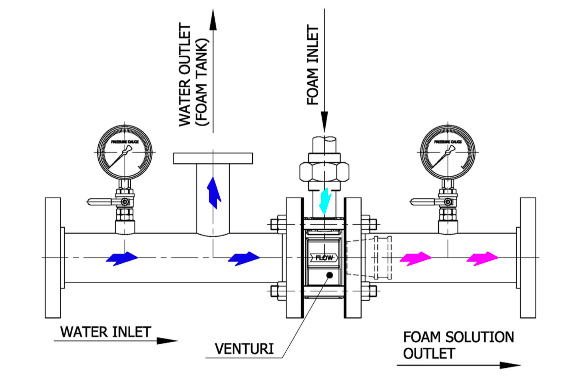

10. Foam Delivery System Wear

Problem: Reduced foam delivery effectiveness

Possible causes:

Worn hoses and fittings (minor leaks cause pressure drop)
Clogged nozzles affecting spray pattern
Improper use or overuse of the system

Solutions:

Regularly inspect hoses and fittings for wear
Clean nozzles with manufacturer-recommended cleaners
Follow manufacturer guidelines for proper use
Use the correct foam type for each application

III. Testing Procedures

1. Static Pressure Test

Purpose: Check system integrity under pressure without flowing foam

Steps:

System isolation: Close all valves to prevent cross-flow between foam and water systems
Pressurization: Apply specified pressure to the foam system using a pressure gauge
Leak detection: Visually inspect all components (valves, fittings, hoses) for drips or leaks

2. Foam Proportioning Test

Purpose: Ensure accurate foam concentrate-to-water ratio

Steps:

Sample collection: Run the system and collect foam samples from different points (e.g., nozzles)
Ratio measurement: Use a refractometer to measure foam concentrate percentage
Adjustment: If ratio is incorrect, adjust the proportioner and retest until correct

3. Foam Discharge Test

Purpose: Evaluate system's ability to produce and distribute foam effectively

Steps:

Nozzle flow and pattern: Observe flow rate and spray pattern — should be uniform and effective
Coverage area: Measure the area covered by foam — ensure it meets design requirements
Foam quality: Evaluate foam stability, consistency, and adhesion — poor quality indicates problems

IV. Preventive Maintenance Summary

Component	Maintenance Action	Frequency
Pump	Check strainer, inspect for leaks, run tests	Daily/Weekly
Proportioner	Clean after use, calibrate settings	After each use
Hoses & Nozzles	Inspect for wear, clean with water	After each use
Foam Tank	Check level, inspect for corrosion	Weekly
Control Panel	Check circuits, test indicators	Weekly
Foam Concentrate	Check expiration date, test quality	Monthly

V. Conclusion

Foam fire trucks are complex equipment with multiple interconnected systems. The most common faults involve pressure systems, foam supply, proportioning, and pump performance. Regular preventive maintenance — including daily checks, proper cleaning after each use, and routine testing — is the most effective way to avoid unexpected breakdowns.

Understanding the proper use of different foam types, following manufacturer guidelines, and providing regular crew training will significantly extend the service life of the foam fire truck and ensure it is ready for any emergency.
