The reliability of a fire truck depends on the maintenance system behind it. Proper operation and responsible use of fire apparatus and specialized firefighting equipment are essential to ensuring that the vehicle performs its function—and directly determine whether a fire truck can complete firefighting and rescue tasks quickly in an emergency. Fire departments worldwide follow structured daily inspection routines to keep vehicles and equipment in a constant state of operational readiness.

Fire Truck Daily Inspection and Maintenance

Based on maintenance practices adopted by fire departments and fire apparatus manufacturers, this article focuses on the key areas that require attention during daily inspection and maintenance—specifically the fire pump, water and foam tanks, vehicle condition, PTO, and fire pump drive shaft.

Quick Answer

Daily fire truck maintenance focuses on four core areas: the fire pump, the water and foam tanks, the chassis and drivetrain, and the power take-off (PTO) and drive shaft. Key practices include lubricating pump rotating components every 3–6 hours of operation, testing pump performance parameters regularly, flushing tanks and piping after foam use, inspecting chassis fasteners and brake systems, and checking PTO engagement and drive shaft lubrication. Corrosion in tanks and piping is a leading cause of pump impeller damage and foam system failure.

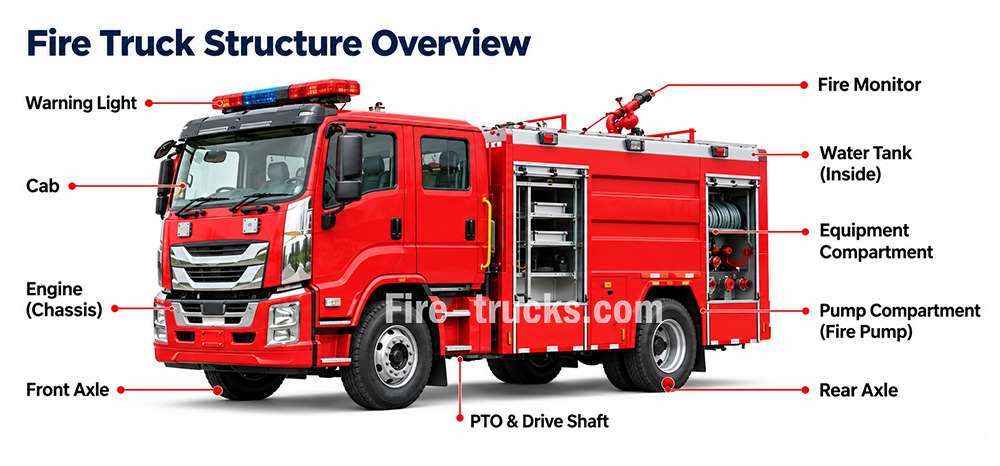

fire truck complete structure and installation location diagram

I. Fire Pump Inspection and Maintenance

The fire pump is one of the most important components of a fire truck, as it is responsible for delivering water or foam solution to the firefighting system. Its maintenance directly affects the effectiveness of firefighting operations. Inspection and maintenance of the fire pump must therefore be performed with particular care—any fault detected should be addressed immediately.

Daily fire pump maintenance primarily covers the following areas.

1. Lubrication

Rotating components of the fire pump should generally be greased once every 3 to 6 hours of operation.

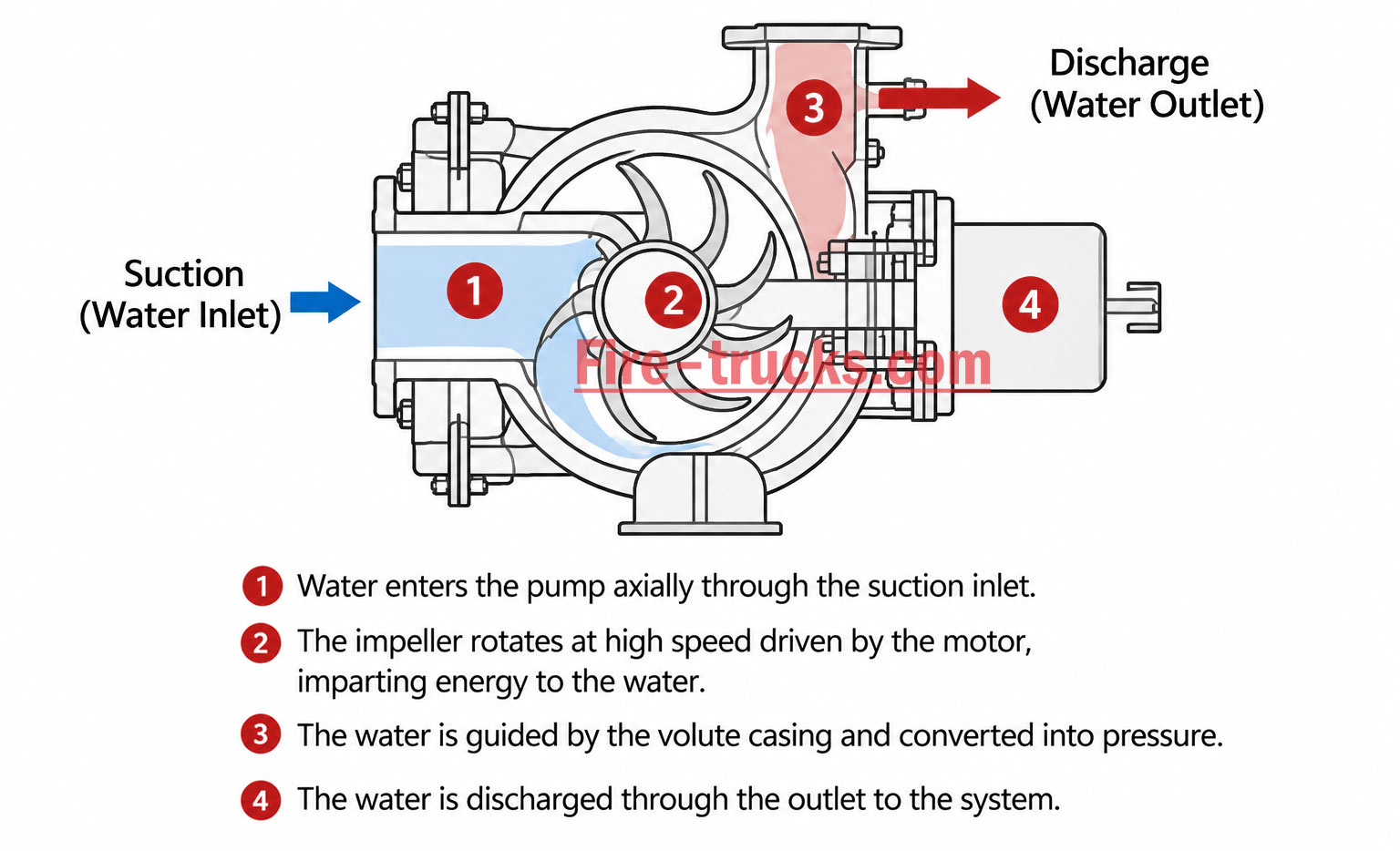

fire pump working principle structure diagram impeller casing mechanical seal water flow path

2. Checking fire pump performance

Important operating parameters of the fire pump should be checked regularly, including:

• Maximum suction depth
• Priming time
• Maximum flow rate
• Other specified fire pump performance parameters

If the measured performance differs significantly from the pump's normal operating condition, the cause should be investigated further.

3. Cleaning the fire pump after using an unclean water source

If the fire truck draws water from an unclean or contaminated source, the fire pump, water tank, and piping system should be cleaned after the operation is complete. Contaminants entering the system can affect the normal operation of valves, piping, and internal pump components. This is particularly important for fire trucks that draw from natural sources or other non-municipal water supplies.

4. Flushing the system after foam operations

After using foam for firefighting, the fire pump, foam proportioning system, and connected piping should be cleaned promptly. Foam concentrate and foam solution should not remain in the system for extended periods. Timely cleaning reduces foam residue and lowers the risk of subsequent corrosion or blockage.

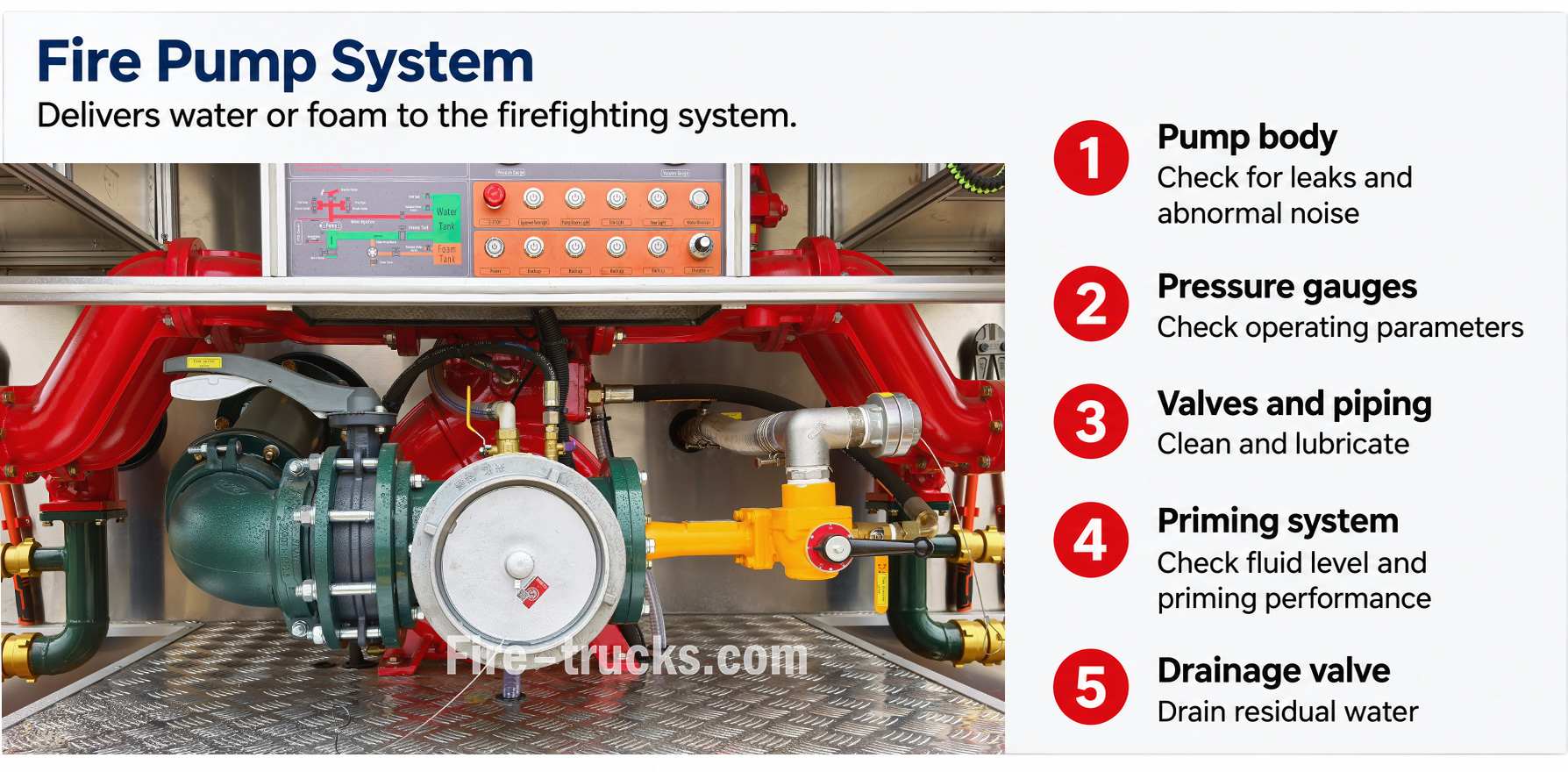

re truck daily inspection checklist maintenance pump room

5. Internal draining

Water accumulated inside the pump body and piping must be thoroughly drained, especially in low-temperature conditions.

6. Fluid level checks

The water ring pump priming reservoir, scraper pump oil reservoir, water tank, and foam tank (if equipped) must all be checked, and topped up promptly if levels are insufficient.

7. Valve and monitor maintenance

Inspect the fire monitor or foam ball valve seat, clean moving parts, and apply a small amount of grease for lubrication.

8. Water quality and diverter pump

Clean the water diverter pump promptly and inspect the gearbox oil. If the oil has deteriorated (turned milky white) or is missing, it should be replaced or topped up promptly.

II. Fire Truck Tank Inspection and Maintenance

Because water and extinguishing agents may be stored inside the tank for extended periods, the tank and related components can be affected by corrosion and residue over time.

Why fire truck tank inspection matters

Once corrosion spreads inside the tank, rust flakes can break off and be washed into the fire pump when the truck discharges water, striking the impeller and causing wear, imbalance, and ultimately pump failure. For foam fire trucks, the risk is even greater: foam solution is highly corrosive. Neglecting the tank interior not only causes rust but also blocks piping, preventing foam from being delivered at the correct proportion. At a building fire scene, a blocked foam line is a direct operational failure.

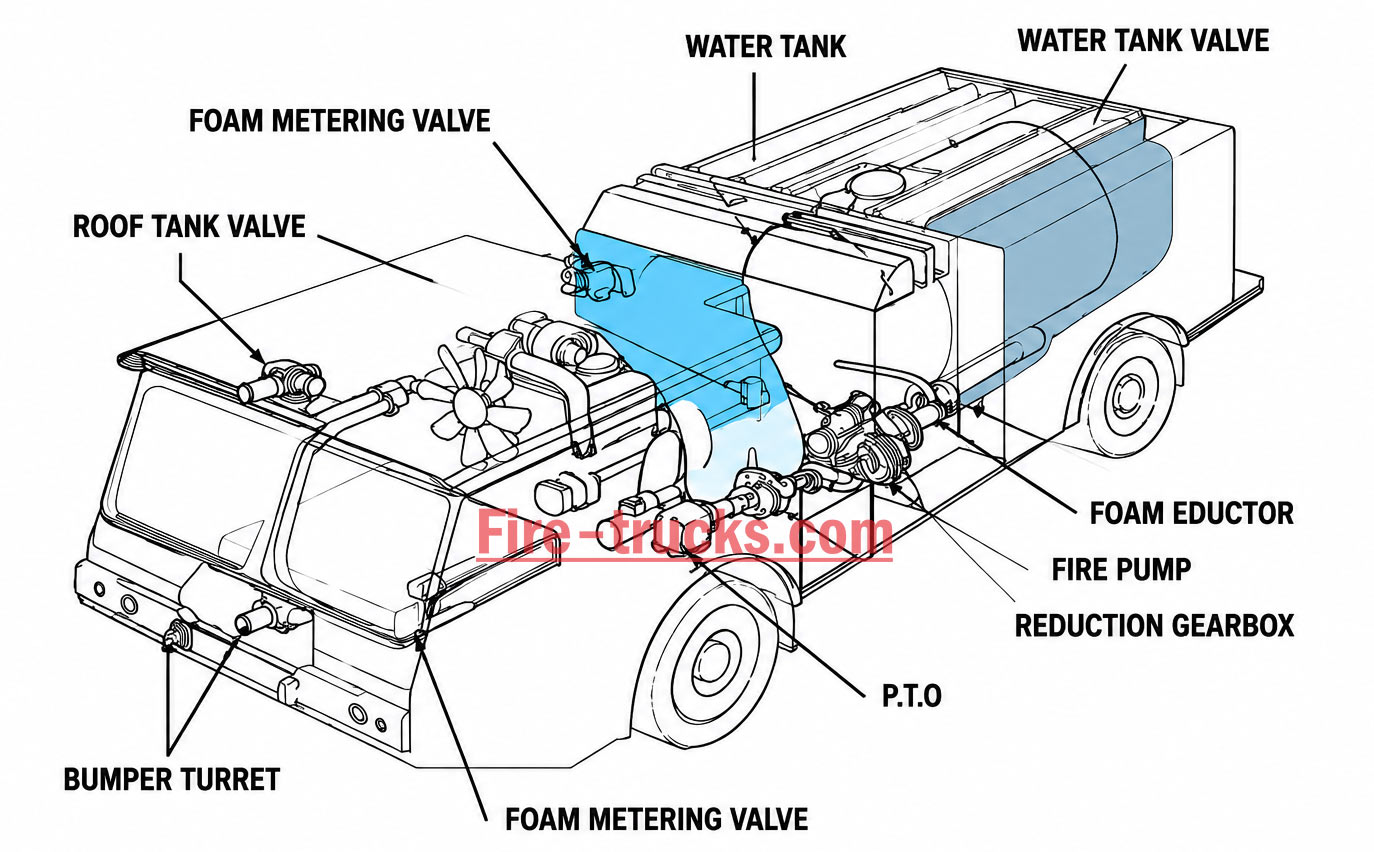

fire truck water tank foam tank structure diagram

Depending on the location and severity of corrosion, different repair methods may be applied:

• Inspect fire truck tanks regularly and systematically
• Once corrosion is found, take effective measures promptly to prevent rust spots from spreading
• Common treatment methods: clean the rusted area, allow it to dry, then apply composite resin, resin, paint, or repair welding
• Valves and piping components associated with the tank should also be inspected and cleaned regularly, with any problems addressed accordingly

III. Fire Truck Chassis and Vehicle Condition Inspection

The mechanical condition of the fire truck itself is directly related to firefighting performance and firefighter safety. Fire trucks typically carry large amounts of firefighting equipment and may be driven under high-intensity conditions during emergencies. Both the mechanical systems and safety systems therefore require regular inspection.

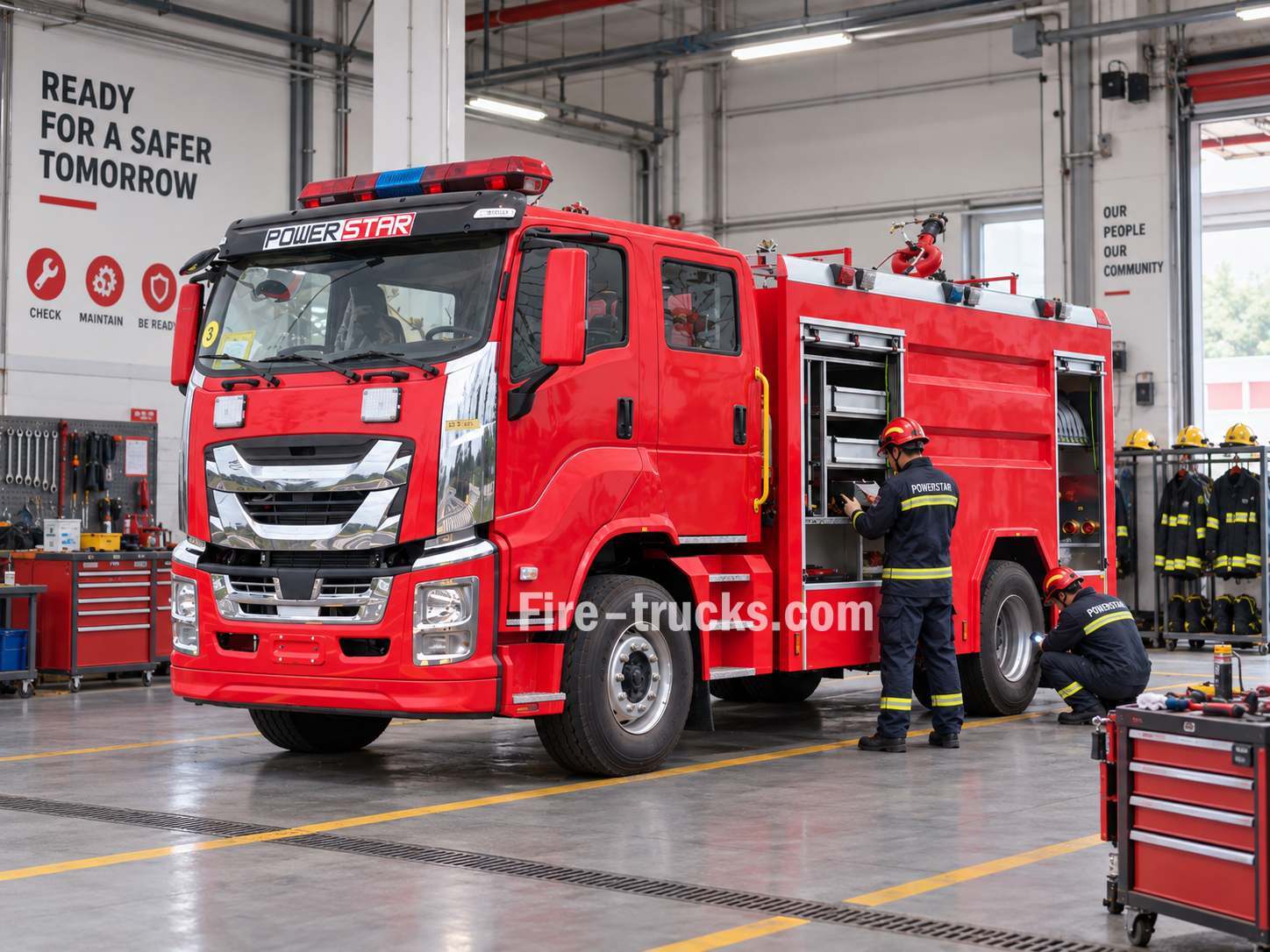

fire truck ready for service after inspection fire station garage

Main inspection items:

Clutch and drivetrain system: Check all bolts on the clutch, gearbox, drive shaft, universal joints, reducer, differential, axle shafts, and other drivetrain components for tightness, damage, and adequate lubrication.

Braking system: Check the brake pedal for looseness or damage; check the flexibility and working condition of the air compressor; confirm the integrity of the air reservoir; confirm the brake valve is flexible; measure brake pad wear.

Steering system: Confirm the steering gear operates normally.

Auxiliary systems: Check the working condition of lights, wipers, and brake indicators.

IV. Power Take-Off (PTO) and Drive Shaft Inspection and Maintenance

Whether the PTO and water pump drive shaft operate smoothly determines whether the fire truck can draw and discharge water effectively. PTO or drive shaft failure can prevent the pump from operating entirely.

fire truck pto working principle structure diagram PTO:
• Check whether the PTO engages normally
• Listen for abnormal noise
• Check whether gear engagement and disengagement are smooth
• Check for automatic disengagement

Water pump drive shaft:
• Check for abnormal noise
• Check whether fixed components are loose or damaged
• Check each drive shaft section and bearing—these require grease injection
• Tighten bolts and apply grease as needed

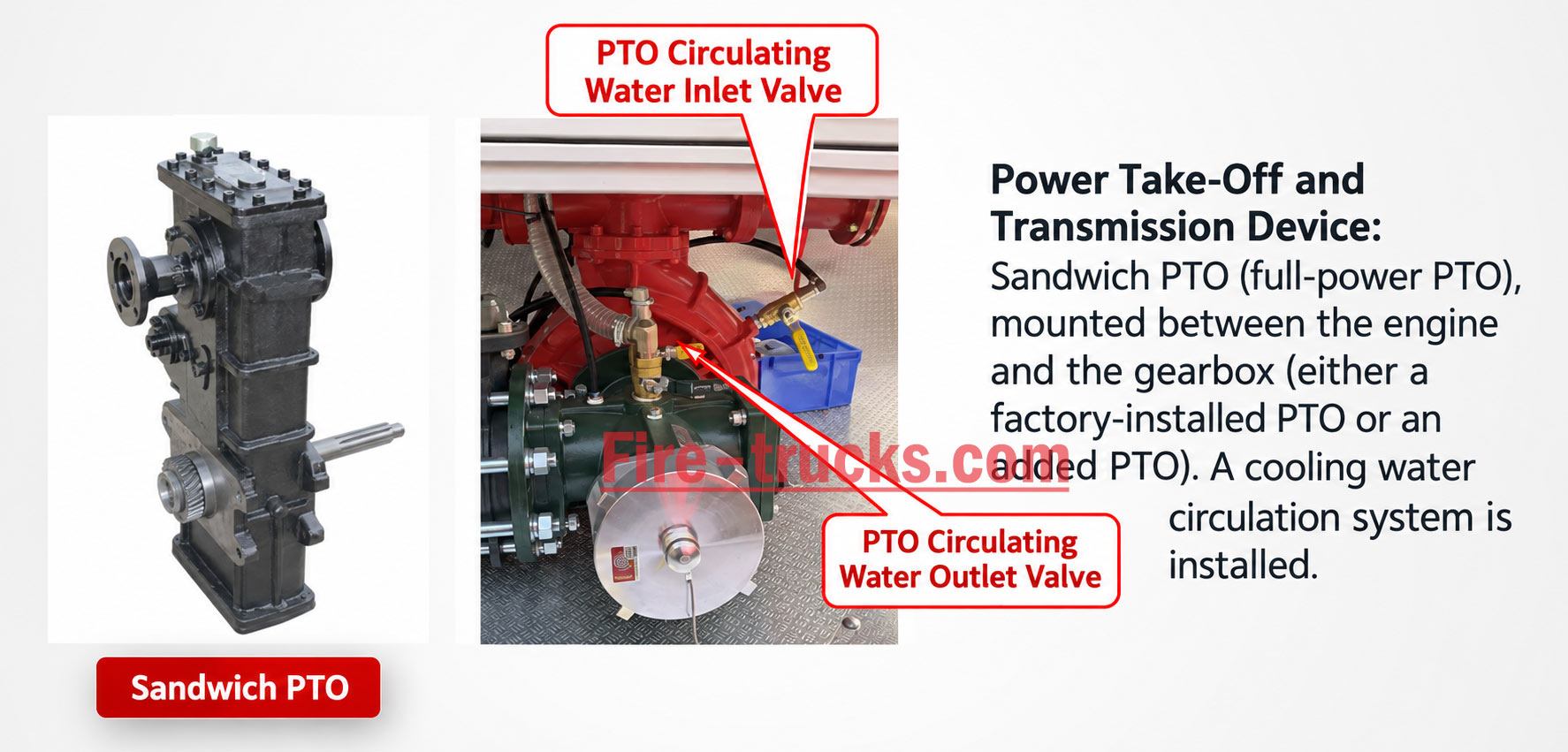

fire truck pto installation location

V. Fire Truck Daily Inspection Checklist

For practical use, daily fire truck inspection items can be organized into the following checklist:

Inspection Area	What to Check	Maintenance Action
Fire Pump	Leaks, lubrication, performance	Lubricate, clean, investigate abnormal performance
Priming System	Priming performance, fluid condition (if applicable)	Inspect, top up or replace fluid as required
Water Tank	Corrosion, rust spots, contamination	Clean and treat corrosion
Foam Tank	Corrosion, residue, leaks	Clean and inspect
Valves	Leaks, operation, contamination	Clean, lubricate, or repair
Piping	Leaks, corrosion, blockage	Clean and inspect
Clutch/gearbox	Bolts, lubrication, operating condition	Tighten, lubricate, adjust as needed
Drive Shaft	Noise, looseness, lubrication	Tighten and lubricate
Braking System	Brake pedal, air system, brake wear	Inspect and repair
Steering System	Steering operation	Inspect and repair
PTO	Engagement, disengagement, noise	Inspect and maintain
Fire Pump Drive Shaft	Noise, mounting, bearings	Lubricate and tighten
Lights/wipers	Working condition	Repair or replace as needed

VI. Fire Truck Inspection Intervals

Fire truck inspection is not a single frequency but is divided into four levels: daily, weekly, monthly, and annual.

Daily inspection (before departure / after return to station):
• Visual inspection of the fire pump—confirm no leaks and no abnormal noise
• Confirm water tank and foam tank levels
• Visual chassis inspection, including tire pressure, lights, and brake pedal
• Confirm PTO engagement status (confirm it is disengaged)
• Inventory of onboard equipment

Weekly inspection:
• Grease fire pump rotating components (if cumulative operating time reaches 3–6 hours)
• Test fire pump priming performance
• Lubricate valve and monitor moving parts
• Inspect hoses and couplings

Monthly inspection:
• Test main fire pump technical parameters (maximum suction depth, priming time, maximum flow rate)
• Check chassis drivetrain bolt tightness
• Comprehensive brake system inspection
• Lubricate PTO and drive shaft

Annual inspection:
• Comprehensive fire pump performance test (per GB 6245 standard)
• Internal tank corrosion inspection
• Fire monitor flow and range test
• Complete vehicle performance verification

VII. Frequently Asked Questions (FAQ)

Q1: What should be checked on a fire truck every day?

A: Daily inspection should cover the fire pump, water tank, foam tank, valves, piping, PTO, drive shaft, braking system, steering system, lights, wipers, and other critical vehicle and firefighting equipment.

Q2: How often should the fire pump be lubricated?

A: Each rotating component of the fire pump should be greased once every 3 to 6 hours of operation. During periods of frequent use, this may mean daily lubrication. During low-activity periods, follow the manufacturer's recommended schedule.

Q3: What should I do if I find corrosion in the fire truck tank?

A: Clean the rusted area, allow it to dry, and apply a protective coating such as composite resin, resin, or paint. In severe cases, repair welding may be necessary. After treatment, monitor the area for recurrence and check the pump and piping for rust particles that may have already entered the system.

Q4: Why does foam concentrate cause more tank corrosion than water?

A: Foam concentrate is chemically active and often corrosive. Unlike plain water, it can attack tank walls, piping, and seals over time. Foam fire trucks therefore require more frequent tank inspection and thorough flushing after each use.

Q5: What are the signs that the PTO is not engaging properly?

A: Common signs include abnormal noise during engagement, difficulty shifting in or out, and automatic disengagement during operation. Any of these symptoms should be investigated immediately, as PTO failure will prevent the pump from operating.

Q6: Can I perform daily inspections myself, or do I need a technician?

A: Most daily inspections—visual checks, fluid level verification, and basic lubrication—can be performed by trained fire department personnel. However, more complex tasks such as pump performance testing, seal replacement, and drivetrain repair should be handled by qualified technicians.

VIII. Summary

Daily inspection and maintenance of fire trucks is not optional—it is the foundation of emergency readiness. The four core areas covered in this guide are:

• Fire pump — lubricate every 3–6 hours of operation, test performance parameters, clean after use, and drain residual water
• Tanks — inspect regularly for corrosion, clean and treat rust promptly, and check valves and piping
• Chassis — check clutch, transmission, brakes, steering, and auxiliary systems for looseness, damage, and fluid levels
• PTO and drive shaft — verify engagement, check for abnormal noise, and lubricate bearings and joints
